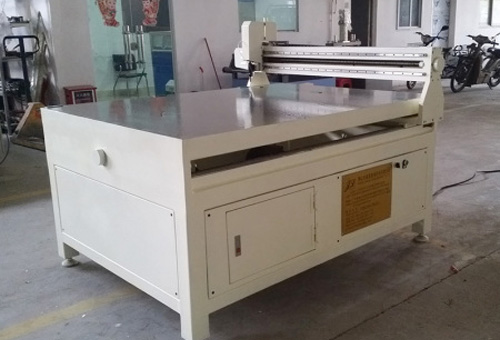

Equipment specifications:
Maximum size of cut glass: 1250*950mm
Worktable height: 900 + 50mm
Equipment weight: 650KG
Cutting Thickness: 0.3mm-19mm Flat Glass (Special Specification Glass Cutting Thickness Range Contrasted with Specification)
Dimensions: 1530 x 1350 x 1300mm
1. Cutting parameters:
Cutting speed: 0-70 M / min
Linear parallelism: less than or equal to 0.10mm/m
The diagonal accuracy is less than or equal to 0.25mm/m.
2, power / power:
The installation of power requirements: 380V/50HZ (three-phase four lines), special circumstances can be adjusted according to customer requirements.
Equipment actual power: 3KW
Compressed air: 0.6MPa (supplied by the user)
3, device performance
Structural optimization: The equipment is analyzed by professional structural software to ensure its stability, dynamic balance and strong mechanics.
It reaches the perfect match and ensures no distortion of the table structure.
It is equipped with a blowing and suction device, which can make the glass more firmly attached to the table during cutting and not move. When blowing, the cut glass can move easily and arbitrarily on the table without damaging the glass.
The guide rail has an automatic oil injection lubrication device, and the oil injection frequency can be set by itself according to the actual use environment.
Cutting oil supply mode: automatic oil filling during cutting and synchronizing with bottom knife.
Guide rail with linear guide, high cutting accuracy, low noise.
4. Mechanical parts
Guide rail and screw rod: Taiwan TBI
Knife wheel / wheel clamp: daily research
Transmission system has automatic oil filling function.
5, electrical parts
Adopt PC computer connection to control, Microsoft windows interface.
The control system adopts Shanghai Weihong control software, and is compatible with CAD drawing software.
Graphics display, graphics tracking during processing.
Program management, file import and export function.
Fault diagnosis and alarm, provide I/O, equipment, controller alarm, provide accurate alarm records.
Can identify DXF files and script files of CAD.
Voltage: 380V/50HZ
Motor servo system
Pneumatic components: Taiwan
