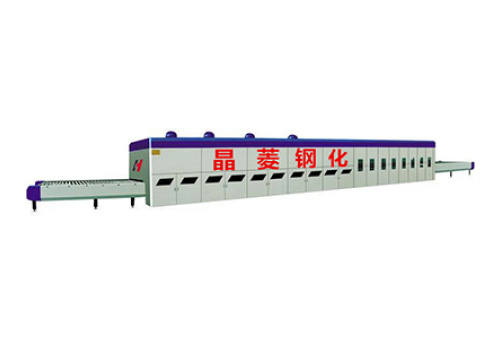

Flat steel:
The maximum specification is 1200mm * 3500mm (3-19mm).
Minimum specification 300mm * 200mm
Glass thickness 3mm--19mm
Production capacity is 60 /h (5mm meter).
Electricity consumption is less than 4 degrees per square meter (5mm meter).
The combined yield is greater than 98%.
Heating power 420KW
Fan power 110-135KW
Power supply capacity 500KVA
The quality is up to GB9963-1998 standard.
The bow deformation is less than 1.0/1000mm; the waveform distortion is less than 0.8/1000mm
The wind spot is invisible on a single sheet (1000mm observation distance, natural light, angle with glass surface greater than 15 degrees, naked eye observation)
Air compressor (user supply) flow 5M3 / min, maximum pressure 1Mpa, power 35KW
Gas tank (user supply) withstand voltage 1Mpa, working pressure 0.8Mpa, volume 3M3
Installation and use area is 15 meters long, 4.5 meters wide and weight: 7-8 tons.
2. Description of main parts of toughened units
Serial number description / origin
1. ceramic roller table Jiangsu or Fujian
2. main drive variable frequency motor Jiangsu or Guangdong
3. outer thermal insulation material, Japan, Suzhou
4. bearings ha, WA, lo
5. aromatic Shanghai
6. fan Jiangsu or Guangdong
7. industrial control computer Advantech or research
8. temperature acquisition board Advantech or research
9. solid relay trigger plate Jiangsu
10.I/O input and output board SIEMENS
11.PLC programmable controller SIEMENS
12.CPU SIEMENS
13. input module SIEMENS
14. output module SIEMENS
15. DAC module SIEMENS
16. grating encoder OMRON
17. proximity switch Korea
18. photoelectric switch OMRON
19. intelligent output board HNT
20. circuit breaker Guangdong
21. thermal relay Guangdong
22. knob Guangdong
23. button Guangdong
24. inverter (10KW below) Guangdong
25. fan inverter Guangdong
26. contactor Guangdong
27. stroke switch CHAT (CHINT)
28. limit switch CHAT (CHINT)
29. solid state relay 80A to 120A Wuxi solid
30. solid state relay 5A Wuxi solid
31. switching power supply 24V /12V CHAT (CHINT)
32. signal lamp CHAT (CHINT)
3. Spare parts list for toughened units
Serial number, specification, type, unit quantity, remarks
1. upper furnace wire porcelain tube (1) L=1166 5
2. upper furnace wire T porcelain tube (1) L=320 5
3. furnace wire type I 205*1200 2
4. belt pulley (upper / lower) 2
5. roller aligning bearing (model) set 2
6. single row chain 08B M 2 with 2 connectors.
7. three row chain 06B-2 M 2 with 2 connectors.
8.PU tube diameter 12 m 10
9.PU tube diameter 8 M 10
10. seamless belt 8 5
11. insulation blanket 1
12. ceiling connection Porcelain Parts 2
13. top connection bolt sleeve 2
14. bearing UC206 set 1
15. bearing UC209 set 1
16. roller bearing bushing 2
17. canvas bag 1
18. quick connector 2
19. universal wheel 10
20. thermocouple 3* 5.
21. insurance (core) RT18-32X 4A 4
22. insurance (core) RT18-32X 2A 4
23. solid state relay 120A 1
24. solid state relay 100A 1
25. solid state relay 80A 4
26. fast fuse RS31 80A 5
27. fast fuse RS31 63A 5
28. fast fuse RS31 40A 5
29. ceramic roller 1
